Description

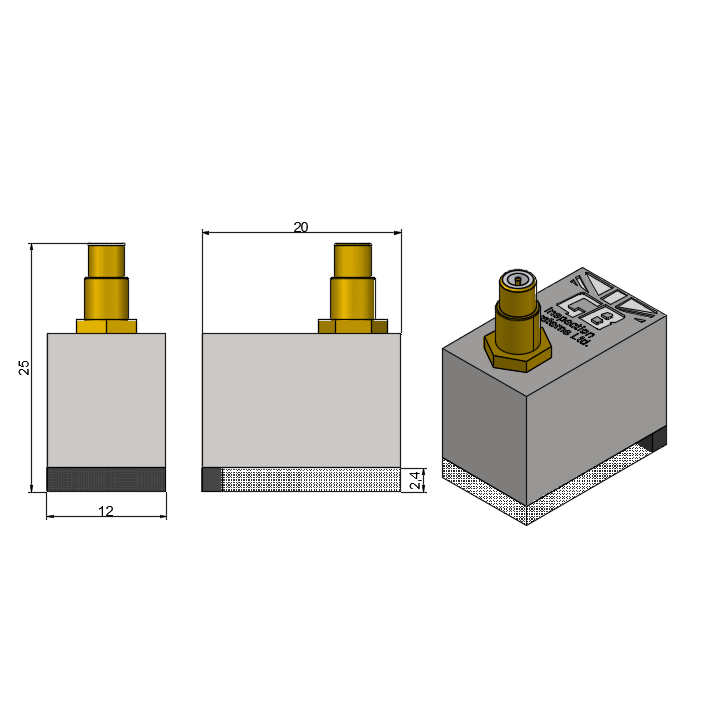

Miniature Single Shear with a Crystal Size of ø6.3mm and a Contact Face of 20 x 12mm with a suitable connection of your choice
MSS
Miniature Single Shear with a Crystal Size of ø6.3mm and a Contact Face of 20 x 12mm with a suitable connection of your choice
Miniature Single Shear with a Crystal Size of ø6.3mm and a Contact Face of 20 x 12mm with a suitable connection of your choice
Additional information
| Weight | 13 g |
|---|---|
| Angle (°) | 38, 45, 60, 70, Non-Standard (See Extra Options) |
| Frequency (MHz) | 1, 2, 2.5, 4, 5, 10, 15 |
| Connector Type | Microdot (MD), Non Standard (See Extra Options), Subvis (S) |
| Temperature (°C) | GH – Intermittent testing up to 300°C, H – Intermittent testing up to 200°C, N – Standard testing up to 90°C |
